Project Job Scheduling — the MRCPSP in LangGOAP#

A Tier 2 tutorial that translates the Multi-mode Resource-Constrained Project Scheduling Problem (MRCPSP) into a LangGOAP planning problem. The original instance ports the PSPLIB multi-mode RCPSP benchmark suite. We use a compact five-job subset (design -> {frontend || backend} -> integrate -> deploy) with two modes per real job so the solver runs instantly while still exercising the key features:

  • Precedence scheduling — the dependency DAG is extracted from action effect->precondition matching, the same way planner/csp.py::build_dependency_graph computes it for every other tutorial.

  • Mode selection — each real job has a fast-expensive and a slow-cheap mode. A* picks whichever mode combination minimizes total duration (the primary objective).

  • Non-renewable resource budget — aggregated budget across the plan turns into a ConstraintSpec(key="budget", level="hard"), flipping the pipeline into alternative-plan enumeration when the cheapest-by-duration plan exceeds it.

  • Makespan minimization — per-job timedelta durations feed CP-SAT’s IntervalVar, so makespan falls out as the longest path through the precedence DAG and independent jobs run in parallel.

What this tutorial does not cover (documented upstream in examples/tutorials/tutorial_examples/data/project_job_scheduling_instance.py): per-period renewable resource capacities, multi-project horizons, and tardiness costs. LangGOAP aggregates resource totals across the whole plan but does not yet model per-time-slice capacity — exactly the same limitation the vehicle routing tutorial calls out.

import logging

# The infeasibility demo further down deliberately triggers the
# CSP's "all alternatives infeasible" advisory — silence the warning.
logging.getLogger("langgoap").setLevel(logging.ERROR)

from langgoap import CSPStatus, GoapGraph
from langgoap.planner.pipeline import plan as pipeline_plan
from tutorial_examples.data.project_job_scheduling_instance import (
    DEFAULT_BUDGET,
    JOBS,
)
from tutorial_examples.project_job_scheduling import (
    project_job_scheduling_actions,
    project_job_scheduling_goal,
    project_job_scheduling_start,
)

print(f"Jobs: {len(JOBS)}  (default budget cap = {DEFAULT_BUDGET})")
for j in JOBS:
    preds = ', '.join(j.predecessors) if j.predecessors else '—'
    modes = ', '.join(f'{m.name}({m.duration_hours}h, ${m.budget})' for m in j.modes)
    print(f'  {j.name:<10s} preds={preds:<18s} modes=[{modes}]')

1. Action catalog — one action per (job, mode) pair#

project_job_scheduling_actions() expands every job into one ActionSpec per mode. The resulting catalog has:

  • design_single and deploy_single — trivial source and sink jobs with a single mode each (kept as actions so the precedence chain is visible in the rendered plan).

  • frontend_fast/slow, backend_fast/slow, integrate_fast/slow — the two-mode real jobs.

The action cost is duration_hours so that A* naturally minimizes total work. resources={"duration_hours": ..., "budget": ...} lets the CSP phase aggregate both quantities, and duration=timedelta(hours=duration_hours) feeds CP-SAT’s temporal scheduler so the makespan respects real parallelism.

actions = project_job_scheduling_actions()
print(f'Total actions: {len(actions)}\n')
for a in actions:
    dur = a.resources.get('duration_hours', 0.0)
    bud = a.resources.get('budget', 0.0)
    print(f'  {a.name:<22s} cost={a.cost:<3.0f} duration={dur:<3.0f}h  budget=${bud:<4.0f}')

Total actions: 8

  do_design_single       cost=1   duration=1  h  budget=$0
  do_frontend_fast       cost=3   duration=3  h  budget=$10
  do_frontend_slow       cost=6   duration=6  h  budget=$4
  do_backend_fast        cost=4   duration=4  h  budget=$12
  do_backend_slow        cost=8   duration=8  h  budget=$6
  do_integrate_fast      cost=2   duration=2  h  budget=$8
  do_integrate_slow      cost=5   duration=5  h  budget=$3
  do_deploy_single       cost=1   duration=1  h  budget=$2

GOAP Execution Graph#

The planner discovers a plan, the executor runs each action, and the observer checks progress — replanning automatically if something fails.

from IPython.display import Image, display

graph = GoapGraph(actions=actions)
display(Image(graph.compile().get_graph().draw_mermaid_png()))
../../_images/d203e373178a0dc06fff2c111d0586811c8dcb2466c9a8c1d741df7bb3c2bb7d.png

2. Solve the fastest schedule#

The default goal asks for every job done and attaches a duration_hours → MINIMIZE objective. Because the goal has an objective, the planner routes through the CSP phase and returns a HardSoftScore together with a full per-action schedule.

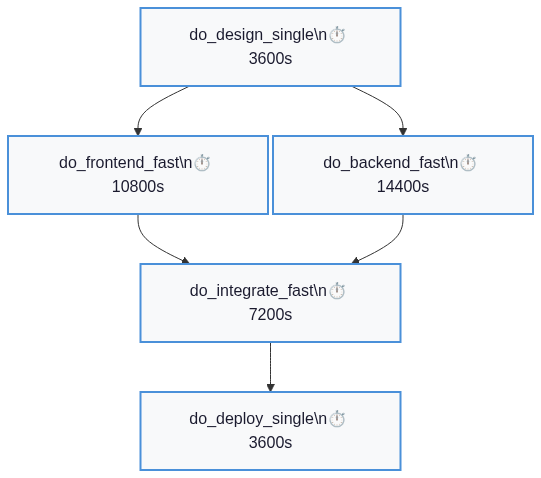

A* picks the all-fast mode combination (duration sum = 11h). CP-SAT’s IntervalVar scheduler then recognizes that frontend and backend have no precedence edge between them and schedules them in parallel after design, so the makespan drops to 8h.

plan_obj = pipeline_plan(
    project_job_scheduling_start(),
    project_job_scheduling_goal(),
    actions,
)

print(f'CSP status:       {plan_obj.metadata.csp.status.value}')
print(f'Duration (A*):    {plan_obj.total_cost} hours (sum of work)')
print(f'Makespan (CP-SAT): {plan_obj.metadata.csp.makespan} (wall clock)')
print()
print('Selected modes:')
for step in plan_obj.actions:
    print(f'  {step.name}')
print()
print('Schedule (parallel where precedence allows):')
for entry in plan_obj.metadata.csp.schedule:
    print(f'  {entry.action_name:<22s} {entry.start} → {entry.end}')

display(Image(plan_obj.draw_mermaid_png()))
../../_images/a851ad39d027ce9728271c13066fc9b140ae7ca522eabc06bde182bd67a2985b.png

3. HardSoftScore decomposition#

The pipeline translates the duration_hours → MINIMIZE objective into the soft component of the score (more negative = worse). Resource usage is reported as level="info" because neither duration_hours nor budget has a ConstraintSpec attached yet — they’re aggregated for reporting but not enforced.

print(f'plan.score        = {plan_obj.score}')
print(f'score.is_feasible = {plan_obj.score.is_feasible()}')
print(f'score.value       = {plan_obj.score.value}  (scalar for logging)')
print()
print('Resource usage (info-level — no constraints yet):')
for u in plan_obj.metadata.csp.resource_usage:
    print(f'  {u.key:<16s} total={u.total:<6.1f} level={u.level}')

plan.score        = HardSoftScore(hard=0, soft=-11)
score.is_feasible = True
score.value       = -11.0  (scalar for logging)

Resource usage (info-level — no constraints yet):
  duration_hours   total=11.0   level=info
  budget           total=32.0   level=info

4. Hard budget → alternative-plan enumeration#

The all-fast plan burns $32 of non-renewable budget. Adding a hard cap of $26 makes that plan infeasible, so the pipeline enumerates alternatives — in this case by blacklisting the most expensive individual action and replanning. The resulting plan swaps frontend_fast (10) for frontend_slow (4), cuts budget to exactly $26, and lengthens duration to 14h.

hard_plan = pipeline_plan(
    project_job_scheduling_start(),
    project_job_scheduling_goal(max_budget=26, max_budget_level='hard'),
    actions,
)

print(f'CSP status:    {hard_plan.metadata.csp.status.value}')
print(f'Score:         {hard_plan.score}')
print(f'Duration (A*): {hard_plan.total_cost} hours')
print()
print('Selected modes:')
for step in hard_plan.actions:
    print(f'  {step.name}')
print()
print('Resource usage (budget is now a hard constraint):')
for u in hard_plan.metadata.csp.resource_usage:
    print(f'  {u.key:<16s} total={u.total:<6.1f} level={u.level}  satisfied={u.satisfied}')

5. Soft budget → penalty, not rejection#

A soft cap of $20 is intentionally unreachable (even the cheapest-by-budget all-slow plan needs $15, but A* minimizes duration and picks all-fast at $32). With level="soft" the pipeline keeps the primary plan and subtracts the $12 overflow from the soft score instead of marking it infeasible.

soft_plan = pipeline_plan(
    project_job_scheduling_start(),
    project_job_scheduling_goal(max_budget=20, max_budget_level='soft'),
    actions,
)

print(f'CSP status: {soft_plan.metadata.csp.status.value}')
print(f'Score:      {soft_plan.score}')
print()
budget_usage = next(u for u in soft_plan.metadata.csp.resource_usage if u.key == 'budget')
print(f'budget.total = {budget_usage.total}   (cap was 20)')
print(f'budget.level = {budget_usage.level}')
print(f'budget.satisfied = {budget_usage.satisfied}')
print()
print('Soft score breakdown:')
print('  -duration_hours objective : -11')
print('  -budget overflow penalty  : -12')
print('  total                     :', soft_plan.score.soft)

6. Infeasible hard cap → CSPStatus.INFEASIBLE#

A budget of $10 is below every alternative the pipeline can reach — even the single-blacklist alternatives cannot find a feasible combination. The plan comes back with CSPStatus.INFEASIBLE and a negative hard score tracking the shortfall.

infeasible_plan = pipeline_plan(
    project_job_scheduling_start(),
    project_job_scheduling_goal(max_budget=10, max_budget_level='hard'),
    actions,
)

print(f'CSP status: {infeasible_plan.metadata.csp.status.value}')
print(f'Score:      {infeasible_plan.score}')
print(f'Feasible?   {infeasible_plan.score.is_feasible()}')

7. End-to-end execution via GoapGraph.invoke()#

The full LangGraph loop plans, executes, and verifies the world state. Each action flips its <job>_done flag, the observer detects that every goal condition is satisfied, and the graph halts with status="goal_achieved".

result = GoapGraph(actions=actions).invoke(
    goal=project_job_scheduling_goal(),
    world_state=project_job_scheduling_start(),
)

print(f'status: {result["status"]}')
print()
print('Final world state:')
for j in JOBS:
    key = f'{j.name}_done'
    print(f'  {key:<18s} {result["world_state"][key]}')

status: goal_achieved

Final world state:
  design_done        True
  frontend_done      True
  backend_done       True
  integrate_done     True
  deploy_done        True

Summary#

  • Precedence for free. Effect→precondition chains become the dependency DAG CP-SAT uses to parallelize independent jobs.

  • Mode selection is A’s job.* Each job’s multiple modes are separate actions; cost-minimization picks the fastest feasible combination.

  • Non-renewable budgets are aggregated resources. One ConstraintSpec(key="budget") is enough to flip the pipeline into alternative-plan enumeration when the cheapest-by-time plan exceeds it.

  • Makespan comes from CP-SAT. IntervalVar + precedence yields the true parallel makespan (8h) instead of the serial sum of durations (11h).

  • Soft vs hard is a one-line switch. Replace level="hard" with level="soft" to record overflow as a penalty instead of marking the plan infeasible.

Next tutorials build on the same CP-SAT scheduler for task assignment with weighted delay minimization and flexible job-shop scheduling.
